VSADNIK torpedo cruisers (1906 - 1907)





Amurets

Ships


Name No Yard No Builder Laid down Launched Comp Fate
Всадник [Vsadnik], 12.1922- Сладков [Sladkov]     Germaniawerft, Kiel, Germany 7.1904 6.9.1905 6.1906 interned by Germany 12.4.1918 - 5.1918, stricken 12.1928
Гайдамак [Gaydamak]     Germaniawerft, Kiel, Germany 7.1904 14.11.1905 6.1906 stricken 11.1926
Амурец [Amurets], 12.1922- Железняков [Zheleznyakov]     Maskyn & Brobygnads, Helsingfors 5.1904 late 1905 1907 dispatch vessel 11.1926, hulk 7.1938
Уссуриец [Ussuriets], 12.1922- Рошаль [Roshal]     Maskyn & Brobygnads, Helsingfors Spring 1904 1907 1907 stricken 11.1926


Technical data


Displacement normal, t

710

Displacement full, t930
Length, m

71.9

Breadth, m

7.16

Draught, m

2.44

No of shafts

2

Machinery

2 VTE, 4 Schulz-Thornycroft boilers

Power, h. p.

6500

Max speed, kts

25

Fuel, t

coal 205

Endurance, nm(kts)1270 - 1920(14)
Armament

2 x 1 - 75/48 Canet, 6 x 1 - 57/50 Hotchkiss, 4 x 1 - 7.6/94, 3 x 1 - 450 TT, 20 - 25 mines

Complement

99



Standard scale images

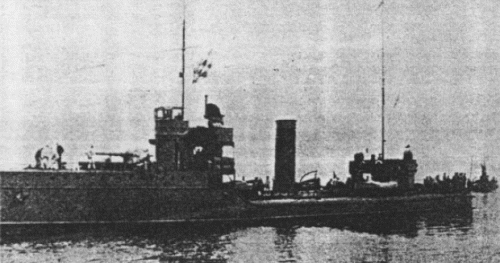

<i>Amurets</i> 1914
Amurets 1914


Graphics


<i>Amurets</i>
Amurets


Project history

In comparison with Okhotnik class they had the smaller dimensions and strengthened artillery. Boiler rooms have been shared by watertight bulkheads, and engine rooms placed one behind another.

Modernizations

1911, all: - 2 x 1 - 75/48, 6 x 1 - 57/50, 2 x 1 - 7.6/94; + 2 x 1 - 102/60, 1 x 1 - 37/20 Hotchkiss

Naval service

No significant events.
