SVALBARD coast guard ship (2002)
Svalbard 2003
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| Svalbard | W303 | Tangen Verft, Krageroe | 17.2.2001 | 5.1.2002 | in service (2019) |
Technical data
| Displacement standard, t | 4200 |
|---|---|
| Displacement full, t | 6300 |
| Length, m | 103.7 |
| Breadth, m | 19.1 |
| Draught, m | 6.50 |
| No of shafts | 2 azipods |
| Machinery | 4 Ulstein-Bergen BRG8 diesel-generators, 2 ABB electric motors |
| Power, h. p. | 13600 |
| Max speed, kts | 18 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 10000(13) |
| Armament | 1 x 1 - 57/70 SAK-57 Mk 1, 1 helicopter (Lynx) |
| Electronic equipment | TRS-3D 16ES, nav. radars, EDO CMS CCS |
| Complement | 50 |
Standard scale images

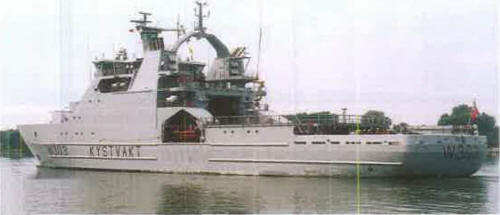

Svalbard 2005
Graphics

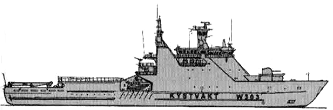

Svalbard 2003
Project history
Intended for northern service with an icebreaking hull capable to break 1m ice. Really can handle one NH90 or two Lynx helicopters.
Modernizations
None.
Naval service
No significant events.
