HAUK fast attack craft (1977-1980)

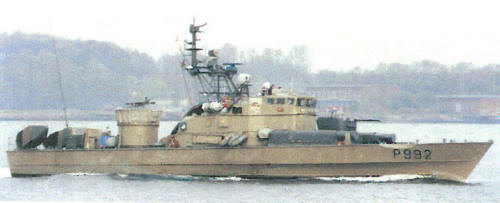

Jo 2003

Ships


Name No Yard No Builder Laid down Launched Comp Fate
Hauk P986   Bergens MV     17.8.1977 stricken 2008
Ørn P987   Bergens MV     19.1.1979 stricken 2008
Terne P988   Bergens MV     13.3.1979 stricken 2008
Tjeld P989   Bergens MV     25.5.1979 stricken 2008
Skarv P990   Bergens MV     17.7.1979 stricken 2008
Teist P991   Bergens MV     11.9.1979 stricken 2008
Jo P992   Bergens MV     1.11.1979 stricken 2008
Lom P993   Bergens MV     15.1.1980 stricken 2008
Stegg P994   Bergens MV     18.3.1980 stricken 2008
Falk P995   Bergens MV     30.4.1980 stricken 2008
Ravn P996   Westamarin, Alta     20.5.1980 stricken 2008
Gribb P997   Westamarin, Alta     10.7.1980 stricken 2008
Geir P998   Westamarin, Alta     16.9.1980 stricken 2008
Erle P999   Westamarin, Alta     10.12.1980 stricken 2008


100 - 1000 t displacement/ BRT tonnage vessels


Name No Yard No Builder Laid down Launched Comp Fate Hauk P986   Bergens MV     17.8.1977 stricken 2008 Ørn P987   Bergens MV     19.1.1979 stricken 2008 Terne P988   Bergens MV     13.3.1979 stricken 2008 Tjeld P989   Bergens MV     25.5.1979 stricken 2008 Skarv P990   Bergens MV     17.7.1979 stricken 2008 Teist P991   Bergens MV     11.9.1979 stricken 2008 Jo P992   Bergens MV     1.11.1979 stricken 2008 Lom P993   Bergens MV     15.1.1980 stricken 2008 Stegg P994   Bergens MV     18.3.1980 stricken 2008 Falk P995   Bergens MV     30.4.1980 stricken 2008 Ravn P996   Westamarin, Alta     20.5.1980 stricken 2008 Gribb P997   Westamarin, Alta     10.7.1980 stricken 2008 Geir P998   Westamarin, Alta     16.9.1980 stricken 2008 Erle P999   Westamarin, Alta     10.12.1980 stricken 2008

Technical data


Displacement standard, t

130
Displacement full, t155
Length, m

36.5
Breadth, m

6.30
Draught, m

1.65
No of shafts

2
Machinery

2 MTU 16V538 TB91 diesels
Power, h. p.

7200
Max speed, kts

34
Fuel, t

diesel oil
Endurance, nm(kts)440(34)
Armament

6 x 1 Penguin Mk 2 SSM (6 Penguin Mk 2), 1 x 1 - 40/70 Bofors 564, 1 x 1 - 20/85 Mk 20 Rh202, 2 - 533 TT (Tp61)
Electronic equipment2x Decca TM626 radars, TVT-300 e/o system, SQ3D/SF sonar, MSI80S CCS
Complement

22


Standard scale images


<i>Hauk </i>1990
Hauk 1990


Graphics


<i>Jo </i>2003
Jo 2003


Project history

Ordered in 1975.

Modernizations

1992-1994, all: - 1 x 1 - 20/85; + 1 x 2 Simbad SAM (4 Mistral)

1999, Stegg; 2000, Jo; 2001, Teist; 2002-2004, Hauk, Ørn, Terne, Tjeld, Skarv, Lom, Falk, Ravn, Gribb, Geir, Erle: - MSI80S CCS; + 1 x 1 - 12.7/90, Vigy 20 e/o system, Argo ECM suite, SENIT2000 CCS

Naval service

No significant events.
