ASAGIRI destroyers (1988 - 1991)

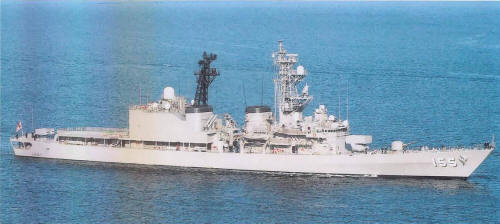

Hamagiri 2008
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| あさぎり [Asagiri] | DD151, 2.2005- TV3516, 3.2012- DD151 | IHI, Tokyo | 13.2.1985 | 19.9.1986 | 17.3.1988 | TS 2.2005-3/2012, in service (2019) | |
| やまぎり [Yamagiri] | DD152, 3.2004- TV3515, 3.2011- DD152 | Mitsui, Tamano | 5.2.1986 | 8.10.1987 | 25.1.1989 | TS 3.2004-3/2011, in service (2019) | |
| ゆうぎり [Yugiri] | DD153 | Sumitomo, Uraga | 25.2.1986 | 21.9.1987 | 28.2.1989 | in service (2019) | |
| あまぎり [Amagiri] | DD154 | IHI, Tokyo | 3.3.1986 | 9.9.1987 | 17.3.1989 | in service (2019) | |
| あまぎり [Hamagiri] | DD155 | Hitachi, Maizuru | 20.1.1987 | 4.6.1988 | 31.1.1990 | in service (2019) | |
| せとぎり [Setogiri] | DD156 | Sumitomo, Uraga | 9.3.1987 | 12.9.1988 | 14.2.1990 | in service (2019) | |
| さわぎり [Sawagiri] | DD157 | Mitsubishi, Nagasaki | 14.1.1987 | 25.11.1988 | 16.3.1990 | in service (2019) | |
| うみぎり [Umigiri] | DD158 | IHI, Tokyo | 31.10.1988 | 9.11.1989 | 12.3.1991 | in service (2019) |
Technical data
| Displacement standard, t | 3500 |
|---|---|
| Displacement full, t | 4900 |
| Length, m | 136.5 |
| Breadth, m | 14.6 |
| Draught, m | 4.50 mean |
| No of shafts | 2 |
| Machinery | COGAG: 4 Kawasaki - Rolls-Royce Spey SM-1A gas turbines |
| Power, h. p. | 54000 |
| Max speed, kts | 30 |
| Fuel, t | gas turbine oil |
| Endurance, nm(kts) | 6000(20) |
| Armament | 2 x 4 Harpoon SSM (8 RGM-84), 1 x 8 Sea Sparrow SAM (18 RIM-7), 1 x 8 ASROC ASuR (16 RUR-5), 1 x 1 - 76/62 OTO-Melara Compact, 2 x 6 - 20/76 Mk 15 Phalanx, 2 x 3 - 324 type 68 / HOS-301 TT, 1 helicopter (SH-60 Seahawk) |
| Electronic equipment | 151-154: OPS-14C, OPS-28C, OPS-20, FCS-2-12E, FCS-2-22A, 2x Mk 90 radars, OQS-4A sonar, NOLR-6C ECM suite, 2x Mk 36 SRBOC decoy RL, SLQ-25 Nixie torpedo decoy, OYQ-7 CCS 155-158: OPS-24B, OPS-28C, OPS-20, FCS-2-23, FCS-2-22A, 2x Mk 90 radars, OQS-4A, OQR-1 sonars, NOLR-6C, OLT-3 ECM suites, 2x Mk 36 SRBOC decoy RL, SLQ-25 Nixie torpedo decoy, OYQ-7 CCS |
| Complement | 220 |
Standard scale images

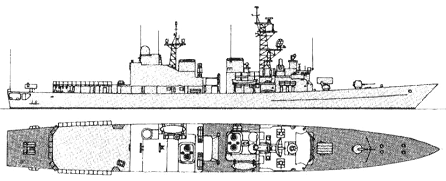

Asagiri 2000
Graphics
Hamagiri 2008

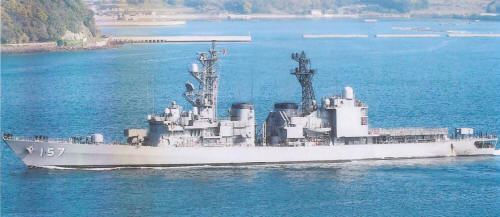

Sawagiri 2008
Project history
An improved Hatsuyuki with upgraded electronics and a new propulsion plant. The last four were completed with further improved radar and helicopter data link; originally the helicopters carried were Sea Kings, later replaced by Sea Hawks. The after funnel and mast arrangements had to be altered because of gas turbine exhaust problems.
Modernizations
1990s, all: - 1 HSS-2B helicopter; + 1 SH-60 helicopter
1990s,Asagiri, Yamagiri, Yugiri, Amagiri: + OQR-1 sonar, OLT-3 ECM suite
early 2000s, Yamagiri: - NOLR-6C ECM suite; + NOLR-8 ECM suite
Naval service
No significant events.
