CP247 patrol boats (1980-1981)
CP248
Ships
| Names | Builders | Completed | Losses | Transfers | Discarding |
|---|---|---|---|---|---|
CP247-253 |
Cooperativa Costruzioni Navali, Ostia (Roma): CP247-253 |
1980: CP247, 248 1981: CP249-253 |
none |
Iraq, 2007: CP247 (P202), CP250 (P201) Albania, 2008: CP249 (R219) |
2005: CP253 2006: CP247, 248, 250-252 |
Technical data
| Displacement standard, t | |
|---|---|
| Displacement full, t | 22 |
| Length, m | 15.0 |
| Breadth, m | 4.85 |
| Draught, m | 1.60 |
| No of shafts | 2 |
| Machinery | 2 Isotta-Fraschini ID36 SS6V diesels |
| Power, h. p. | 1380 |
| Max speed, kts | 29.5 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | |
| Armament | 2 x 1 - 7.6/90 |
| Electronic equipment | radar |
| Complement | 7 |
Graphics

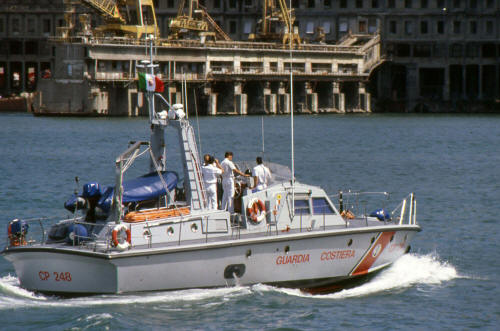

CP248
Project history
Patrol launches of Coast Guard.
Modernizations
None.
Naval service
No significant events.
