CP2010 patrol boats (1973-1975)
CP2012
Ships
| Names | Builders | Completed | Losses | Transfers | Discarding |
|---|---|---|---|---|---|
CP2010-2017 |
Cantieri Motomar Spa, Lavagna: CP2010-2017 |
1973-1975: CP2010-2017 |
none |
Albania, 2002: CP2010 (R224) (after discarding) |
1997: CP2016 2001: CP2010, 2015 2003: CP2014, 2017 2004: CP2012 2005: CP2013 in service (2019): CP2011 |
Technical data
| Displacement standard, t | 11 |
|---|---|
| Displacement full, t |
|
| Length, m | 12.5 |
| Breadth, m | 3.61 |
| Draught, m | 1.10 |
| No of shafts | 2 |
| Machinery | CP2010, 2011: 2 AIFO 8362 SRM27 diesels CP2012-2017: 2 AIFO V504M diesels |
| Power, h. p. | CP2010, 2011: 470 CP2012-2017: 420 |
| Max speed, kts | 24 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 400 |
| Armament | none |
| Electronic equipment | none |
| Complement | 4 |
Graphics

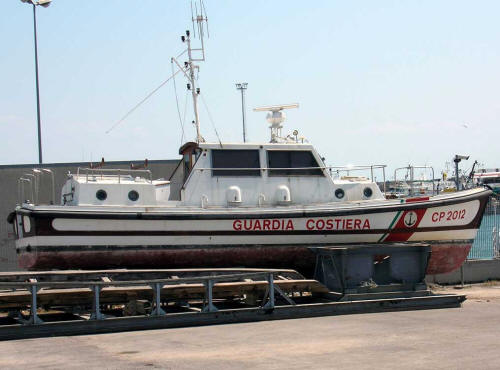

CP2012
Project history
Patrol launches of Coast Guard.
Modernizations
None.
Naval service
No significant events.
