HQ-371 fast attack craft (missile) (1994-1999)

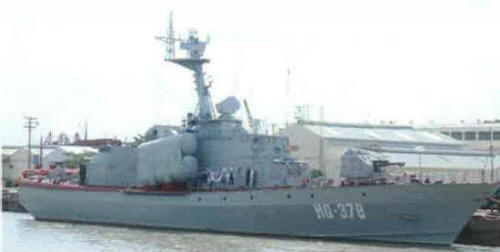

HQ-378 2007
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| HQ-371 (ex-Р-69 [R-69]) | HQ-371 | 01729 | Vympel, Rybinsk, Russia | 10.1994 | in service (2019) | ||
| HQ-372 (ex-Р-104 [R-104]) | HQ-372 | 01728 | Vympel, Rybinsk, Russia | 10.1994 | in service (2019) | ||
| HQ-377, later- HQ-373 | HQ-377, later- HQ-373 | 01730 | Vympel, Rybinsk, Russia | 1999 | in service (2019) | ||
| HQ-378, later- HQ-374 | HQ-378, later- HQ-374 | 01731 | Vympel, Rybinsk, Russia | 1999 | in service (2019) |
Technical data
| Displacement standard, t | 385 |
|---|---|
| Displacement full, t | 455 |
| Length, m | 56.1 |
| Breadth, m | 10.2 |
| Draught, m | 2.20 |
| No of shafts | 2 |
| Machinery | 2 M-15E gas turbine units (each consist of M-75 cruising gas turbine and M-70 boost gas turbine) |
| Power, h. p. | 10000 + 24000 = 34000 |
| Max speed, kts | 43 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 2200(14) |
| Armament | 2 x 2 P-20M Termit SSM (4 P-20M), 1 x 4 Strela-2M SAM (16 9M32M), 1 x 1 - 76/59 AK-176M, 2 x 6 - 30/54 AK-630M |
| Electronic equipment | Garpun-E, MR-123 Vympel-A, Kivach-2 radars, 2x PK-16 decoy RL |
| Complement | 37 |
Standard scale images
HQ-371 2000
Graphics
HQ-378 2007
Project history
Fast attack craft of Russian export project 1241RE.
Modernizations
None.
Naval service
No significant events.
