LOS FRAILES landing ships logistic (2012-)

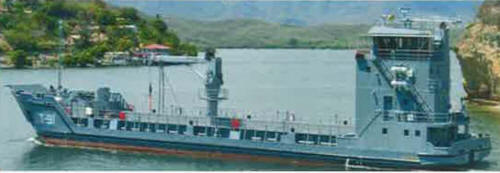

Los Frailes 2012
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| Los Frailes | T91 | Damex, Santiago de Cuba, Cuba | 5.3.2012 | in service (2019) | |||
| Los Testigos | T92 | Damex, Santiago de Cuba, Cuba | 18.12.2012 | in service (2019) | |||
| Los Roques | T93 | Damex, Santiago de Cuba, Cuba | 25.10.2013 | in service (2019) | |||
| Los Monjes | T94 | Damex, Santiago de Cuba, Cuba | 6.9.2014 | in service (2019) | |||
| Las Aves | T95 | Damen Ha Long, Vietnam | 2016 | in service (2019) | |||
| Las Chimanas | T96 | Damen Ha Long, Vietnam | 2016 | in service (2019) | |||
| Las Caracas | T97 | Damen Ha Long, Vietnam | 2016 | in service (2019) | |||
| Las Picudas | T98 | Damen Ha Long, Vietnam | 2016 | in service (2019) | |||
| Los Hermanos | T99 | Damen Ha Long, Vietnam | 2020 | building (2019) | |||
| Los Palanquines | T910 | Damen Ha Long, Vietnam | 2020 | building (2019) | |||
| Los Tortuguillos | T911 | Damen Ha Long, Vietnam | 2020 | building (2019) | |||
| Los Venades | T912 | Damen Ha Long, Vietnam | 2020 | building (2019) |
Technical data
| Displacement standard, t | 600 |
|---|---|
| Displacement full, t | 740 |
| Length, m | 57.3 |
| Breadth, m | 12.0 |
| Draught, m | 2.70 |
| No of shafts | 2 |
| Machinery | 2 Caterpillar C32 diesels |
| Power, h. p. | 2230 |
| Max speed, kts | 11 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | |
| Armament | none |
| Military load | 42 cargo containers, 220t fuel, 197t water |
| Electronic equipment | 2x nav. radars |
| Complement | 11 |
Standard scale images
Los Frailes 2015
Graphics
Los Frailes 2012
Project history
Damen Stan Lander 5612 design. Multipurpose transport and utility craft. Bow ramp and crane.
Modernizations
None.
Naval service
No significant events.
