PV11 patrol craft

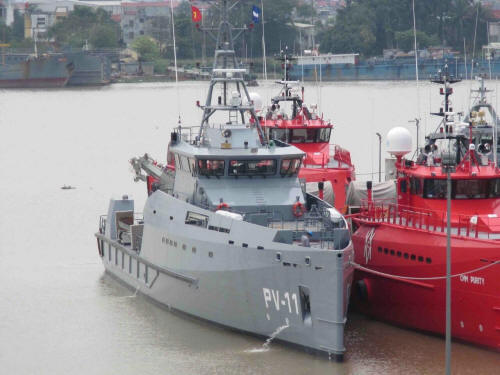

PV11 2016
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comm | Fate |
|---|---|---|---|---|---|---|---|
| PV11 | Damen Song Cam, Haiphong, Vietnam | 2015 | 2019 | suspended (2019) | |||
| PV12 | Damen Song Cam, Haiphong, Vietnam | 2019 | suspended (2019) | ||||
| PV13 | Damen Song Cam, Haiphong, Vietnam | 2019 | suspended (2019) | ||||
| PV14 | Damen Song Cam, Haiphong, Vietnam | 2019 | suspended (2019) | ||||
| PV15 | Damen Song Cam, Haiphong, Vietnam | 2019 | suspended (2019) | ||||
| PV16 | Damen Song Cam, Haiphong, Vietnam | 2019 | suspended (2019) |
Technical data
| Displacement standard, t | |
|---|---|
| Displacement full, t | 485 |
| Length, m | 51.3 |
| Breadth, m | 9.40 |
| Draught, m | 3.50 |
| No of shafts | 4 |
| Machinery | 4 Caterpillar C32 diesels |
| Power, h. p. | 5800 |
| Max speed, kts | 24 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 2000(24) |
| Armament | 2 x 1 - 12.7/90 |
| Electronic equipment | JRC5310/6, JRC5310/12 radars |
| Complement | 19 |
Standard scale images
PV11 2016
Graphics
PV11 2016
Project history
Damen Stan Patrol 5009 design. Ordered in March 2014.
Modernizations
None
Naval service
No significant events.
