GROWLER missile submarine (1958)

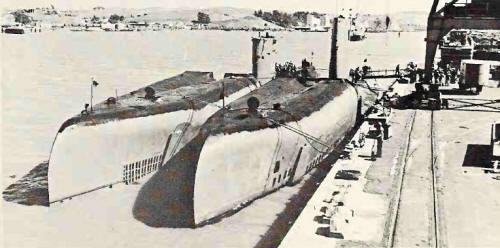

Grayback (left) and Growler (right) 1964

Ships


No Name Yard No Builder Laid down Launched Comm Fate
SSG577 Growler   Portsmouth N Yd, Kittery 15.2.1955 5.4.1958 30.8.1958 stricken 9.1980


Technical data


Displacement standard, t2174
Displacement normal, t

 / 3387

Length, m

96.6

Breadth, m

8.30

Draught, m

5.20

No of shafts

2

Machinery

3 Fairbank Morse diesel-generators, 2 Elliott electric motors

Power, h. p.

4600 / 5600

Max speed, kts

15 / 12

Fuel, t

diesel oil

Endurance, nm(kts)
Armament

2 x 1 Regulus I SSM launchers (4 SSM-N-8), 6 - 533 TT (4 Mk 54 bow, 2 Mk 55 stern)

Electronic equipmentBPS-12 radar, BQS-4, BQR-2 sonars, BLR-1 ECM suite
Complement

84

Diving depth operational, m210


Standard scale images


<i>Growler </i>1959
Growler 1959


Graphics


<i>Grayback</i> (left) and<i> Growler</i> (right) 1964
Grayback (left) and Growler (right) 1964


Project history

Grayback and Growler were laid down as sisters to Darter, then cut in two and lengthened by ~15m to accommodate two cylindrical hangars for Regulus missiles.

Modernizations

1964: - 2 x 1 Regulus I SSM (4 SSM-N-8)

Naval service

Both were decommissioned in May 1964 when Regulus was retired.
