"Huckins 78-ft" torpedo boats (PT95) (1942 - 1943)





PT96 1942

Ships


Names Builders Commissioned Losses Transfers Discarding

PT95 - 102

PT255 - 264

Huckins Yacht, Jacksonville: PT95 - 102, 255 - 264

7-11/1942: PT95 - 102

2-9/1943: PT255 - 264

none

none

9/1945-1/1946: PT95 - 102, 255 - 264



Technical data


Displacement standard, t

35

Displacement full, t

46

Length, m

23.8

Breadth, m

5.91

Draught, m

1.52

No of shafts

3

Machinery

3 petrol engines

Power, h. p.

4050

Max speed, kts

42

Fuel, t

petrol 11400 l

Endurance, nm(kts)

500 (20)

Armament

1 x 1 - 20/70 Mk 4, 2 x 2 - 12.7/90, 4 - 533 TT

Electronic equipment

SO or SCR-517A radar

Complement17


Graphics

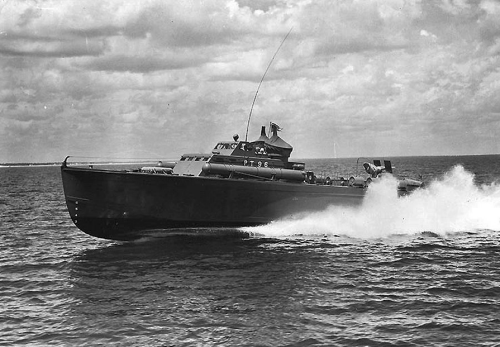

<i>PT96</i> 1942
PT96 1942


Project history

Huckins 78ft type. These boats were used basically for training.

Modernizations

None.

1.1946, survived: 1 x 1 - 20/70 Mk 10, 2 x 2 - 12.7/90, 4 - 533 TT, SO or SCR-517A radar

Naval service

: No significant changes.
