QUIROS gunboats (1895 / 1900)





Quiros

Ships


No

Name

Yard No

Builder

Laid down

Launched

Comm

Fate

PG40

Quiros (ex-Quiros)



Hong Kong & Whampoa, UK

5/1894

6.1896

1897 // 3.1900

sunk as target 10.10.1923

PG42

Villalobos (ex-Villalobos)



Hong Kong & Whampoa, UK

6/1894

24.1.1895

7/1896 // 3.1900

stricken 10.1928



Technical data


Displacement normal, t

350 - 370

Displacement full, t
Length, m

44.2

Breadth, m

6.93

Draught, m

2.36

No of shafts

1

Machinery

1 VTE, 2 cylindrical boilers

Power, h. p.

450

Max speed, kts

11

Fuel, t

coal 54 - 60

Endurance, nm(kts)

PG40: 2900(10)

PG42: 3200(10)

Armament

PG40: 2 x 1 - 57/50 Driggs-Schroeder Mk II/III, 2 x 1 - 47/40-45 Driggs-Schroeder Mk I/II

PG42: 2 x 1 - 57/50 Driggs-Schroeder Mk II/III, 2 x 1 - 47/40-45 Driggs-Schroeder  Mk I/II, 2 x 1 - 37/40 Driggs-Schroeder heavy Mk I

Complement

44 - 57



Graphics


<i> Quiros</i>

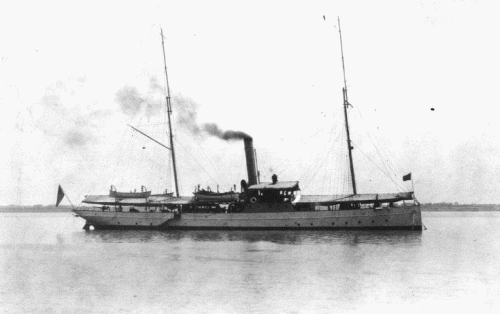

Quiros


Project history

Ex-Spanish gunboats captured in Manila Bay in 1898 at the end of Spanish-American war.

Modernizations

1910, Quiros: unarmed

1918, Villalobos: - 2 x 1 - 57/50; + 2 x 1 - 47/40-45 Driggs-Schroeder Mk I/II

Naval service

No significant events.
