BAGLEY torpedo boats (1901)

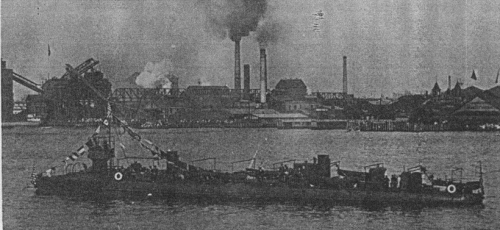

Barney 1908

Ships


No Name Yard No Builder Laid down Launched Comm Fate
TB24, 8.1918- CTB10 Bagley, 8.1918- unnamed 28 Bath Iron Wks 1/1900 25.9.1900 10/1901 stricken 3.1919
TB25, 8.1918- CTB11 Barney, 8.1918- unnamed 29 Bath Iron Wks 1/1900 28.7.1900 10/1901 sold 7.1920
TB26, 8.1918- CTB12 Biddle, 8.1918- unnamed 30 Bath Iron Wks 2/1900 18.5.1901 10/1901 sold 7.1920


Technical data


Displacement normal, t

168

Displacement full, t
Length, m

47.9

Breadth, m

5.18

Draught, m

1.52 mean

No of shafts

2

Machinery

2 VTE, 2 Normand boilers

Power, h. p.

4200

Max speed, kts

28

Fuel, t

coal 47

Endurance, nm(kts)



Armament

3 x 1 - 37/40 Driggs-Schroeder heavy Mk I, 3 x 1 - 450 TT

Complement

29



Graphics


<i>Barney </i>1908
Barney 1908


Project history

Authorised under the Act of 4.5.1898. Two funnels far apart. Three single TT to port and starboard, between funnels and far aft.

Modernizations

None.

Naval service

No significant events.
