PAMLICO cutter (1907)





Pamlico

Ships


No Name Yard No Builder Laid down Launched Comm Fate
CG15, 1942- WPR57 Pamlico   Pusey & Jones, Wilmington 1906 8.3.1907 7/1907 to USN as gunboat 4.1917-8/1919, USCG river gunboat 1942, sold 7.1947


Technical data


Displacement normal, t
Displacement full, t455
Length, m

48.2

Breadth, m

9.14

Draught, m

1.73

No of shafts2
Machinery

2 VTE, 1 Babcock & Wilcox boiler

Power, h. p.600
Max speed, kts9.8
Fuel, t

coal

Endurance, nm(kts)2000 (8)
Armament

2 x 1 - 47/45 Driggs-Schroeder Mk II

Complement33


Graphics

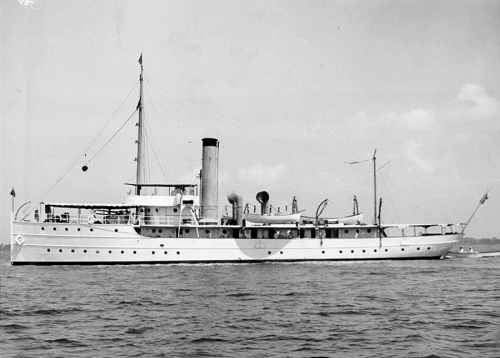

<i>Pamlico</i>
Pamlico


Project history

Shallow-draught Revenue service cutter, intended for inland waters.

Modernizations

1917: + 2 x 1 - 47/45; + 2 x 1 - 57/45 Driggs-Schroeder Mk II

Naval service

No significant events.
