LCC landing craft, control (1943-1944)





LCC(1)

Ships


Names Builders Commissioned Losses Transfers Discarding

LCC(1/2)25470-25529 and 24 others (99 LCC(1) and LCC(2) built)

LCC(2)39044-39058

Albina Marine: LCC(1)25470-25496, LCC(2)39044-39058

Consolidated SB: LCC(1/2)25497-25529

Charleston N Yd: 24 LCC(1/2)

1943-1944: 99 units








Technical data


Displacement standard, t
Displacement full, t30
Length, m

17.1

Breadth, m

LCC(1): 4.14

LCC(2): 4.57

Draught, m

1.21

No of shafts2
Machinery2 diesels
Power, h. p.450
Max speed, kts

13.5

Fuel, tdiesel oil
Endurance, nm(kts)
Armament3 x 2 - 12.7/90
Electronic equipmentSO radar
Complement14


Graphics

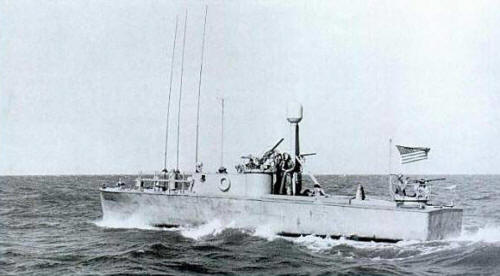

LCC(1)
LCC(1)


Project history

Landing craft, control.

Modernizations

None.

Naval service

None.
