LCAC100 air-cushion landing craft
LCAC100
Ships
| No | Name | Yard No | Builder | Laid down | Launched | Comm | Fate |
|---|---|---|---|---|---|---|---|
| LCAC100 | Textron, New Orleans | 11.2014 | 2010 | building (2018) | |||
| LCAC101 | Textron, New Orleans | 11.2014 | 2010 | building (2018) | |||
| LCAC102 | Textron, New Orleans | 11.2014 | 2010 | building (2018) | |||
| LCAC103 | Textron, New Orleans | 11.2014 | 2010 | building (2018) | |||
| LCAC104 | Textron, New Orleans | 11.2014 | 2020 | building (2018) | |||
| LCAC105 | Textron, New Orleans | 11.2014 | 2020 | building (2018) | |||
| LCAC106 | Textron, New Orleans | 11.2014 | 2020 | building (2018) | |||
| LCAC107 | Textron, New Orleans | 11.2014 | 2020 | building (2018) | |||
| LCAC108 | Textron, New Orleans | 11.2014 | 2020 | building (2018) | |||
| LCAC109 | Textron, New Orleans | 11.2014 | 2020 | building (2018) |
Technical data
| Displacement standard, t | 101 |
|---|---|
| Displacement full, t | 181 |
| Length, m | 24.5 wl 28.0 oa |
| Breadth, m | 13.3 wl 14.5 oa |
| Draught, m | 1.42 at rest, loaded / 0 |
| No of shafts | 2 shrouded airscrews + 4 centrifugal lift fans |
| Machinery | 4 Rolls-Royce MT7 gas turbines (2 for propulsion, 2 for lift) |
| Power, h. p. | 20000 |
| Max speed, kts | 45 light, 35 loaded |
| Fuel, t | gas turbine oil |
| Endurance, nm(kts) | |
| Armament | 2 x 1 - 7.6/92 |
| Military load | 70 t cargo, 26 troops |
| Electronic equipment | Furuno 2127 radar |
| Complement | 5 |

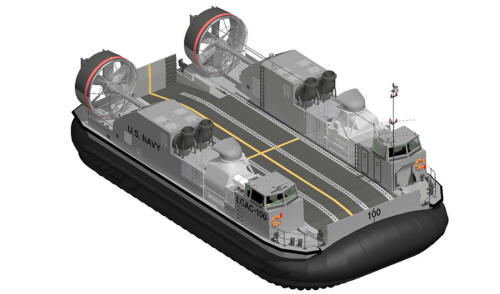

Graphics
LCAC100
Project history
Planned replacement for LCAC with more powerful turbines. 74 units are planned to be commissioned in 2019-2031.
Modernizations
.
Naval service
.
