JUNELLA trawler-minesweeper (1975/1982)
Junella Many thanks to Wolfgang Stöhr for additional information on this page.
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| Junella | H294 | 332 | Clelands SB, Willington Quay | 9.9.1975 | 1975 // 4.1982 | returned 10.1982 |
Technical data
| Displacement standard, t | 1614brt |
|---|---|
| Displacement full, t | |
| Length, m | 60.6 pp |
| Breadth, m | 13.1 |
| Draught, m | 4.70 |
| No of shafts | 2 |
| Machinery | 2 Mirrlees Blackstone diesels |
| Power, h. p. | 3180 |
| Max speed, kts | 15 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | |
| Armament | Mk 8 Oropesa, Mk 9 Kite Otter mechanical minesweeping gear |
| Electronic equipment | nav. radar |
| Complement |

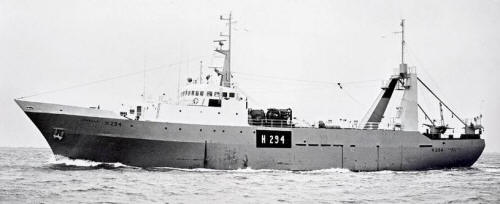

Graphics
Junella Many thanks to Wolfgang Stöhr for additional information on this page.
Project history
In spring 1982 five large stern trawlers were requisitioned by Admiralty for Falklands service as part of 11th Mine Countermeasures Squadron. They swept two Argentine minefields during a conflict.
Modernizations
None.
Naval service
No significant events.
