Sentinel 1984 Many thanks to Wolfgang Stöhr for additional information on this page.

Ships

Name	No	Yard No	Builder	Laid down	Launched	Comp	Fate
Sentinel (ex-Seaforth Warrior)	P246	1433	Husumweft, Husum, West Germany			27.6.1975 // 14.1.1984	sold 1992

Technical data

Displacement standard, t	710 934brt 745dwt
Displacement full, t	1100
Length, m	60.5 oa 52.8 pp
Breadth, m	13.9
Draught, m	4.50
No of shafts	2
Machinery	2 Atlas MaK 12M453 A4 diesels
Power, h. p.	7760
Max speed, kts	14
Fuel, t	diesel oil 550
Endurance, nm(kts)
Armament	2 x 1 - 40/60 Mk 9, 3 x 1 - 7.6/90, 2 x 1 - 50 flare rocket launchers
Electronic equipment	2x Krupp-Atlas nav. radars
Complement	26

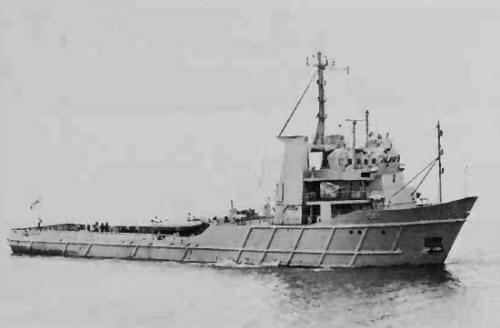

Graphics

Project history

Former oil rig support ship, converted for Falklands Islands patrol duties, acquired in February 1983. Ice-strengthened. Bow thruster.

Modernizations

None.

Naval service

No significant events.
