Protector 2011 Many thanks to Wolfgang Stöhr for additional information on this page.

Ships

Name	No	Yard No	Builder	Laid down	Launched	Comp	Fate

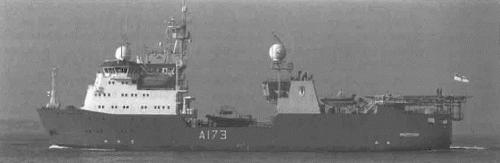

Protector (ex-Polarbjørn)	A173	76	Havyard Leirvik AS, Hatlo, Norway		6.2001	2001 // 23.6.2011	in service (2019)

Technical data

Displacement standard, t
Displacement full, t	4985
Length, m	81.9 pp 89.7 oa
Breadth, m	17.8
Draught, m	7.85
No of shafts	2
Machinery	2 Ulstein-Bergen BRM/G-8 diesels
Power, h. p.	9500
Max speed, kts	14.5
Fuel, t	diesel oil 1300
Endurance, nm(kts)
Armament	4 x 1 - 7.6/90, helicopter deck
Electronic equipment	2x radars
Complement	88 + 84 passengers

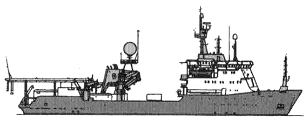

Standard scale images

Graphics

Project history

Norwegian arctic patrol ship owned by GC Rieber Snipping, chartered and commissioned into Royal Navy service 23.6.2011 (through at least 2014: as a temporary replacement for the damaged HMS Endurance (A 171). Fitted with one 60-ton main offshore crane, one 12.5-ton crane for remotely operated vehicles, and one 25-ton A-frame utility crane. Carries 156 m³ of aviation fuel, 1512 m³ fuel oil, and 169 m³ of potable water. During a 2011 refit in Denmark, prior to commissioning, her helicopter landing deck was relocated to the ship's stern from its previous position atop the bridge: the vessel is not fitted with a helicopter hangar. Able to carry at least two Pacific 22 RIBs or one Mk5 LCVP plus a number of small ground vehicles and quad bikes for research or military purposes.

Modernizations

None.

Naval service

No significant events.
