FIGHTING SHIPS OF THE WORLD
UNITED KINGDOM
COASTAL FORCES
MTB/MGB511 motor torpedo / gun boats (8, 1944 - 1946)





MTB2018 1948

Ships


Name No Yard No Builder Laid down Launched Comp Fate
MTB511, 1945 - MTB2011, 1948 - MTB5511 1948- P5511   Camper & Nicholson, Gosport     7.1944 sold 10.1954
MTB512, 1945 - MTB2012, 1948 - MTB5512 1948- P5512   Camper & Nicholson, Gosport     1944 sold 1950s
MTB513, 1945 - MTB2013, 1948 - MTB5513 1948- P5513   Camper & Nicholson, Gosport     1944 sold 1950s
MTB514, 1945 - MTB2014, 1948 - MTB5514 1948- P5514   Camper & Nicholson, Gosport     4.1945 sold 3.1954
MTB515, 1945 - MTB2015, 1948 - MTB5515 1948- P5515   Camper & Nicholson, Gosport     1945 sold 1950s
MTB516, 1945 - MTB2016, 1948 - MTB5516 1948- P5516   Camper & Nicholson, Gosport     1945 sold 1950s
MTB2017 (ex-MTB517), 1948 - MTB5517 1948- P5517   Camper & Nicholson, Gosport     1.1946 sold 2.1954
MTB2018 (ex-MTB518), 1948 - MTB5518 1948- P5518   Camper & Nicholson, Gosport     7.1946 sold 3.1956


100 - 1000 t displacement/ BRT tonnage vessels


Name No Yard No Builder Laid down Launched Comp Fate MTB511, 1945 - MTB2011, 1948 - MTB5511 1948- P5511   Camper & Nicholson, Gosport     7.1944 sold 10.1954 MTB512, 1945 - MTB2012, 1948 - MTB5512 1948- P5512   Camper & Nicholson, Gosport     1944 sold 1950s MTB513, 1945 - MTB2013, 1948 - MTB5513 1948- P5513   Camper & Nicholson, Gosport     1944 sold 1950s MTB514, 1945 - MTB2014, 1948 - MTB5514 1948- P5514   Camper & Nicholson, Gosport     4.1945 sold 3.1954 MTB515, 1945 - MTB2015, 1948 - MTB5515 1948- P5515   Camper & Nicholson, Gosport     1945 sold 1950s MTB516, 1945 - MTB2016, 1948 - MTB5516 1948- P5516   Camper & Nicholson, Gosport     1945 sold 1950s MTB2017 (ex-MTB517), 1948 - MTB5517 1948- P5517   Camper & Nicholson, Gosport     1.1946 sold 2.1954 MTB2018 (ex-MTB518), 1948 - MTB5518 1948- P5518   Camper & Nicholson, Gosport     7.1946 sold 3.1956

Technical data


Displacement standard, t93
Displacement full, t113
Length, m35.7
Breadth, m6.76
Draught, m1.31 deep load
No of shafts3
Machinery

3 Packard petrol engines

Power, h. p.

4050

MTB/MGB511 - 513: 3600

Max speed, kts

33

MTB/MGB511 - 513: 31

Fuel, t

petrol 23600 l

Endurance, nm(kts)
Armament

2 x 1 - 57/43 6pdr 7cwt QF Mk II, 1 x 2 - 20/70 Oerlikon Mk IV, 2 x 1 - 20/70 Oerlikon Mk IV, 4 - 450 TT, 2 DC

MTB/MGB2014: 1 x 1 - 114/19 8cwt QF Mk I, 1 x 1 - 57/43 6pdr 7cwt QF Mk II, 1 x 2 - 20/70 Oerlikon Mk IV, 2 x 1 - 20/70 Oerlikon Mk IV, 4 - 450 TT, 2 DC

MTB2017, 2018: 1 x 1 - 114/19 Mk I, 1 x 1 - 57/43 Mk VII, 1 x 2 - 20/70 Mk XII, 2 x 1 - 20/70 Mk III, 4 - 450 TT, 2 DC

Electronic equipmenttype 291U or type 293 radar
Complement30


Graphics

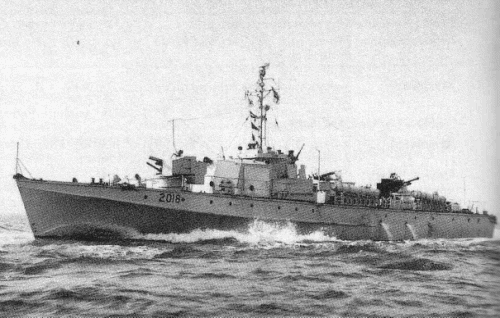

<i>MTB2018</i> 1948
MTB2018 1948

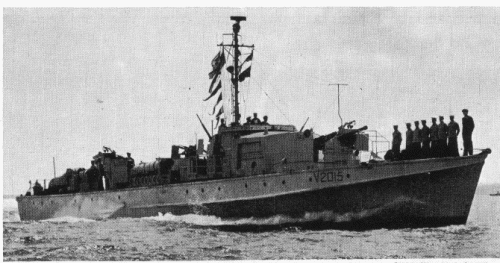

<i>MTB2015</i> 1946
MTB2015 1946


Project history

large round-bilge seaworthy boats.

Modernizations

None.

Naval service

No significant events.
