Baniyas 1976

Ships

Names	Builders	Completed	Losses	Transfers	Discarding
P561 كوكب [Kawkab] P562 ثعبان [Thoaban] P563 بانياس [Baniyas]	Keith Nelson, Bembridge, UK: P561-563	1969: P561-563	none	none	1995: P561-563

Technical data

Displacement standard, t	32
Displacement full, t	38
Length, m	15.8 pp 17.5 oa
Breadth, m	4.72
Draught, m	1.37
No of shafts	2
Machinery	2 Caterpillar diesels
Power, h. p.	750
Max speed, kts	19
Fuel, t	diesel oil
Endurance, nm(kts)	445(15)
Armament	2 x 1 - 20/80 A41A
Electronic equipment	Decca RM916 radar
Complement	11

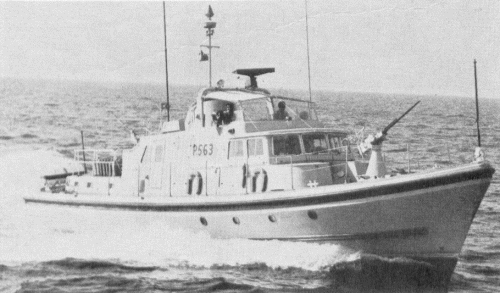

Graphics

Project history

Glasse fibre-hulled boats of Abu Dhabi Marine Police, transferred to Marine Poilce of UAE in July 1977.

Modernizations

None.

Naval service

No significant events.
