RODOS gunboats (1870-1874)

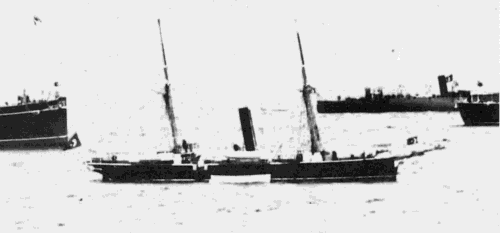

İstanköy 1897
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| Rodos | Tersane-i Amire, Istanbul | 1869 | 1870 | 1870 | stricken 1899 | ||
| İstanköy | Tersane-i Amire, Istanbul | 1869 | 1871 | 1874 | hulk 1902 |
Technical data
| Displacement normal, t | 203 bm |
|---|---|
| Displacement full, t | |
| Length, m | 35.7 pp |
| Breadth, m | 5.30 |
| Draught, m | 1.80 |
| No of shafts | 1 |
| Machinery | 1 HSA, 1 rectangular boiler |
| Power, h. p. | |
| Max speed, kts | 12 |
| Fuel, t | coal 20 |
| Endurance, nm(kts) | |
| Armament | 4 x 1 - 128/14 11pdr SBML |
| Complement | 35 |
Graphics
İstanköy 1897
Project history
Wooden gunboats.
Modernizations
1885, both: were armed with: 2 x 1 - 57/37 SK L/40 C/83, 2 x 5 - 37/17 Hotchkiss
Naval service
No significant events.
