SİVRİHİSAR minelayers (1940)

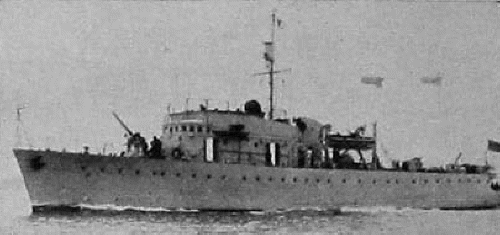

Sivrihisar 1942
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| Sivrihisar | Thornycroft, Woolston, UK | 1939 | 10.4.1940 | 1940 | discarded 1964 | ||
| Yüzbaşı Hakki, 1940- Torgud Reis | Thornycroft, Woolston, UK | 1939 | 1940 | 1940 | discarded 1964 |
Technical data
| Displacement standard, t | 350 |
|---|---|
| Displacement full, t | 375 |
| Length, m | 52.5 |
| Breadth, m | 7.93 |
| Draught, m | 1.75 |
| No of shafts | 2 |
| Machinery | 2 Atlas Polar diesels |
| Power, h. p. | 1200 |
| Max speed, kts | 15 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | |
| Armament | 1 x 1 - 75/52 SK L/55 C/13, 1 x 1 - 40/39 2pdr QF Mk VIII, 40 mines, 2 DCR |
| Complement | 60 |
Standard scale images
Sivrihisar 1940
Graphics
Sivrihisar 1942
Project history
Shallow-draught minelayers, ordered in 1939.
Modernizations
None.
Naval service
No significant events.
