FOÇA minesweepers (1967)
Foça 1979
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| Foça | M500 | Peterson Bldrs, Sturgeon Bay, USA | 23.8.1966 | 8.1967 | stricken 2015 | ||
| Fethiye | M501 | Peterson Bldrs, Sturgeon Bay, USA | 7.12.1966 | 9.1967 | stricken 2014 | ||
| Fatsa | M502 | Peterson Bldrs, Sturgeon Bay, USA | 11.4.1967 | 10.1967 | stricken 2015 | ||
| Finike | M503 | Peterson Bldrs, Sturgeon Bay, USA | 11.1967 | 12.1967 | stricken 2015 |
Technical data
| Displacement standard, t | 203 |
|---|---|
| Displacement full, t | 239 |
| Length, m | 34.1 |
| Breadth, m | 7.14 |
| Draught, m | 2.40 |
| No of shafts | 2 |
| Machinery | 4 General Motors Detroit 6-71 diesels |
| Power, h. p. | 960 |
| Max speed, kts | 12.5 |
| Fuel, t | diesel oil 20 |
| Endurance, nm(kts) | 1000(9) |
| Armament | 2 x 1 - 12.7/90, mechanical, acoustic, magnetic minesweeping gear |
| Electronic equipment | radar |
| Complement | 20 |
Standard scale images

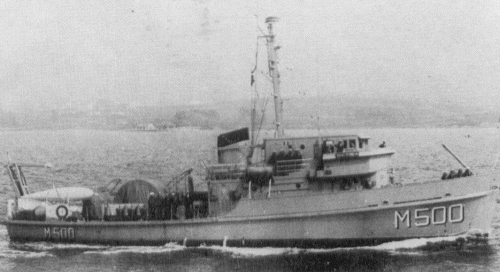

Foça 1970
Graphics
Foça 1979

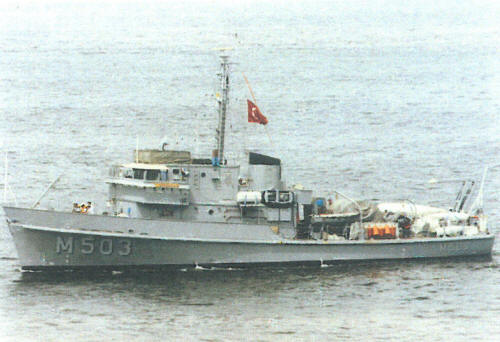

Finike 2001
Project history
US Cape class inshore minesweepers, built under MDAP.
Modernizations
None.
Naval service
No significant events.
