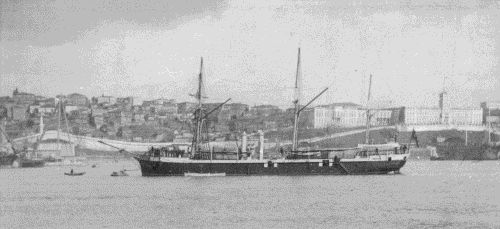

Sinop 1890

Ships

Name	No	Yard No	Builder	Laid down	Launched	Comp	Fate
Sinop			White, Cowes, UK	1858	1858	1860	stricken 1901
İzmir			White, Cowes, UK	1858	1859	1859	stricken 1879
Bursa			Wigram, Blackwall, UK	1858	1859	1859	stricken 1899
Edirne			Wigram, Blackwall, UK	1858	1859	1859	stricken 1901

Technical data

Displacement normal, t	769 - 787
Displacement full, t
Length, m	53.2 pp
Breadth, m	9.30
Draught, m	4.50
No of shafts	1
Machinery	1 2-cyl HSE, 2 rectangular boilers
Power, h. p.	640
Max speed, kts	10 - 11
Fuel, t	coal 120
Endurance, nm(kts)
Armament	16 x 1 - 120/16 33pdr SBML
Complement	150

Graphics

Project history

Wooden-hulled, ship-rigged sloops, these vessels were sheathed and coppered and featured raked masts and one funnel between the fore- and mainmasts.

Modernizations

1885, all survived: were armed with 2 x 1 - 149/22 RK L/25 C/75, 2 x 1 - 120/22 RK L/22 C/78, 3 x 1 - 37/20 Hotchkiss, 2 x 1 - 25/42 Nordenfelt

1889, Sinop: was armed only with 3 x 1 - 50/22 SK L/25, 3 x 1 - 37/20 Hotchkiss

Naval service

No significant events.
