Muzaffer

Ships

Name	No	Yard No	Builder	Laid down	Launched	Comp	Fate
Mansure			Tersane-i Amire, Istanbul	1863	1864	1864	stricken 1908
Lübnan			Tersane-i Amire, Istanbul	1862	1864	1864	foundered 4.1867
Muzaffer			Tersane-i Amire, Izmir	1863	1864	1864	stricken 1908

Technical data

Displacement normal, t	783 bm
Displacement full, t
Length, m	55.1 oa 52.6 pp
Breadth, m	9.30
Draught, m	4.40
No of shafts	1
Machinery	1 2-cyl HSE, 2 rectangular boilers
Power, h. p.	650
Max speed, kts	10
Fuel, t	coal 120
Endurance, nm(kts)
Armament	12 x 1 - 121/14 37pdr SBML
Complement	130

Graphics

Project history

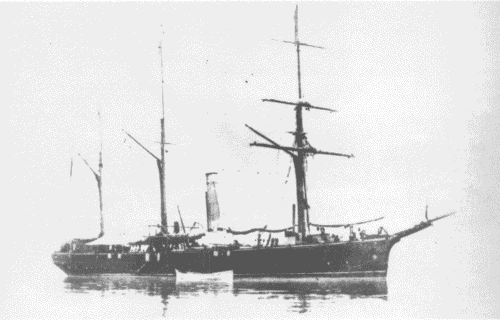

Wooden-hulled, ship-rigged sloops, these vessels were sheathed and coppered and featured raked masts and one funnel between the fore- and mainmasts.

Modernizations: 1888, both survived: were armed with 2 x 1 - 149/22 RK L/25 C/75, 2 x 1 - 120/22 RK L/25 C/78, 3 x 1 - 37/20 Hotchkiss, 2 x 1 - 25/42 Nordenfelt.

Naval service

Lübnan foundered in April 1867 off Milo Ada in heavy weather.
