NAVYPEDIA


LS12 1980

Ships

Names	Builders	Commissioned	Losses	Transfers	Discarding
P339 LS9, 1960s- P1209, 1991- P109 P308 LS10, 1960s- P1210, 1991- P110 P309 LS11, 1960s- P1211, 1991- P111 P310 LS12, 1960s- P1212, 1991- P112	USCG Yd, Curtis Bay, USA: P339, 308-310	6/1953: P339, 308-310	None	None	1999: P109-112

Technical data

Displacement standard, t
Displacement full, t	63
Length, m	25.3
Breadth, m	4.25
Draught, m	1.55
No of shafts	2
Machinery	2 Cummins diesels
Power, h. p.	1100
Max speed, kts	18
Fuel, t	diesel oil
Endurance, nm(kts)
Armament	1 x 1 - 20/70 Mk 10, 2 x 4 - 178 Mousetrap Mk 20 ASWRL
Electronic equipment	radar, sonar
Complement

Standard scale images

Graphics

Project history

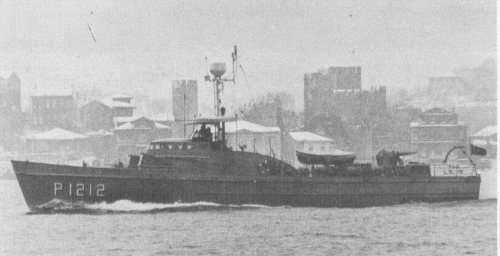

USCG 83-ft cutters, built for Turkish Navy.

Modernizations

None.

Naval service

No significant events.
