DOĞAN motor torpedo boats (1931)

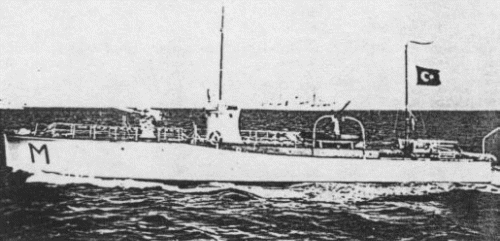

Martı 1930s
Ships
| Names | Builders | Commissioned | Losses | Transfers | Discarding |
|---|---|---|---|---|---|
Doğan Denizkuşu Martı |
SVAN, Venice, Italy: Doğan, Denizkuşu, Martı |
1931: Doğan, Denizkuşu, Martı |
None |
None |
1948: Doğan, Denizkuşu, Martı |
Technical data
| Displacement standard, t | 32 |
|---|---|
| Displacement full, t | |
| Length, m | 21.0 |
| Breadth, m | 4.20 |
| Draught, m | 1.01 |
| No of shafts | 3 |
| Machinery | 3 Isotta-Fraschini petrol engines |
| Power, h. p. | 1500 |
| Max speed, kts | 34 |
| Fuel, t | petrol |
| Endurance, nm(kts) | |
| Armament | 1 x 1 - 75/52 SK L/55 C/13, 1 x 1 - 20/65 C/30, 2 - 450 TR, 2 DCR (8) |
| Complement | 10 |
Standard scale images
Doğan 1931
Graphics
Martı 1930s
Project history
Built by SVAN in 1926, but commissioned only in 1931. Design was developed on a basis of Italian D series MTBs (MAS397-410), but without auxiliary electric motors and accumulators for silent running. Round-bilge hull.
Modernizations
None.
Naval service
No significant events.
