FIGHTING SHIPS OF THE WORLD
TOGO
COASTAL FORCES
AGOU patrol boats (2014)
Oti 2014
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| Agou | P763 | UFAST, Quimper, France // Raidco-Marine, Lorient, France | 30.1.2014 | 31.3.2014 | in service (2020) | ||
| Oti | P764 | UFAST, Quimper, France // Raidco-Marine, Lorient, France | 30.4.2014 | 8.7.2014 | in service (2020) |
Technical data
| Displacement standard, t | |
|---|---|
| Displacement full, t | 100 |
| Length, m | 34.0 |
| Breadth, m | 6.53 |
| Draught, m | 1.90 |
| No of shafts | 2 |
| Machinery | 2 MTU 12V2000 M72 diesels |
| Power, h. p. | 2940 |
| Max speed, kts | 23 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 1500(15) |
| Armament | 1 x 1 - 12.7/90, 2 x 1 - 7.6/90 |
| Electronic equipment | Furuno radar |
| Complement | 17 |
Graphics

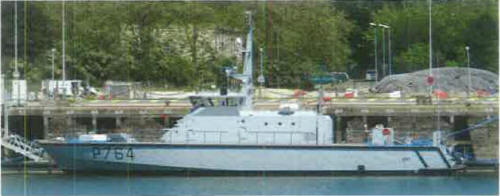

Oti 2014
Project history
French RPB33 class. Steel hull with aluminium superstructure. Small RHIB is carried on platform aft.
Modernizations
None.
