SPIGGEN midget submarine (1990)
Spiggen 1998
Ships
| Names | Builders | Completed | Losses | Transfers | Discarding |
|---|---|---|---|---|---|
Spiggen |
K. A. Johanssons: Spiggen |
19.6.1990: Spiggen |
none |
none |
2009: Spiggen |
Technical data
| Displacement standard, t | |
|---|---|
| Displacement normal, t | 12 / 14 |
| Length, m | 11.0 |
| Breadth, m | 1.70 |
| Draught, m | 1.40 |
| No of shafts | 1 |
| Machinery | 1 Volvo Penta diesel-generator, 1 electric motor |
| Power, h. p. | |
| Max speed, kts | 6 / 5 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | / 27(5) |
| Armament | none |
| Electronic equipment | |
| Complement | 2 |
| Diving depth operational, m | 100 |
Graphics

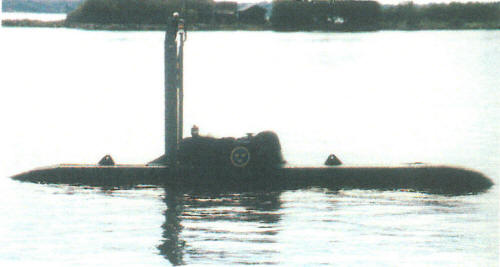

Spiggen 1998
Project history
Intended to simulate the foreign submarines long believed to have been operating in Swedish waters.
Modernizations
None.
Naval service
No significant events.
