SJÖLEJONET submarines (1938-1942)

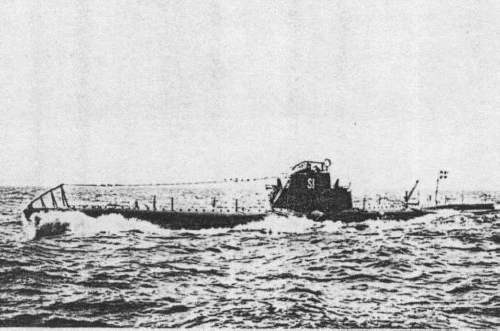

Sjölejonet 1945 Many thanks to Wolfgang Stöhr for additional information on this page.

Ships


Name No Yard No Builder Laid down Launched Comp Fate
Sjölejonet Sle 185 Kockums, Malmö 1935 25.7.1936 9.1938 stricken 5.1959
Sjöbjörnen Sbj 204 Kockums, Malmö 1936 15.1.1937 3.1939 stricken 11.1964
Sjöhunden Shu 205 Kockums, Malmö 1937 26.11.1938 12.1939 stricken 7.1960
Svärdfisken Sf 231 Kockums, Malmö 1939 18.5.1940 4.1941 stricken 5.1959
Tumlaren Tu 232 Kockums, Malmö 1940 8.9.1940 7.1941 stricken 1.1964
Dykaren Dy 233 Kockums, Malmö 1940 17.12.1940 10.1941 stricken 12.1959
Sjöhästen Shä 235 Kockums, Malmö 1940 19.10.1940 7.1941 stricken 4.1963
Sjöormen Sor 236 Kockums, Malmö 1940 5.4.1941 12.1941 stricken 1.1964
Sjöborren Sbo 237 Kockums, Malmö 1941 14.6.1941 5.1942 stricken 6.1959


Technical data


Displacement standard, t580
Displacement normal, t

/ 760

Length, m

64.2

Breadth, m

6.40

Draught, m

3.40

No of shafts

2

Machinery

2 MAN diesels / 2 electric motors

Power, h. p.

2100 / 1000

Max speed, kts

16.2 / 10

Fuel, t

diesel oil

Endurance, nm(kts)
Armament

2 x 1 - 40/40 K/43 M36, 6 - 533 TT (3 bow, 1 stern, 1 x 2 trainable, 10)

Electronic equipmenthydrophone
Complement

38

Diving depth operational, m60?


Standard scale images


<i>Sjölejonet</i> 1940
Sjölejonet 1940
<i>Sjölejonet</i> 1955
Sjölejonet 1955


Graphics


<i>Sjölejonet</i> 1945 <i>Many thanks to Wolfgang Stöhr for additional information on this page.</i>
Sjölejonet 1945 Many thanks to Wolfgang Stöhr for additional information on this page.


Project history

First Swedish submarines of completely national design (at creation of several previous classes technical help of German Weser design bureau was used). At the same time in design of Sjölejonet class two constructive decisions were available which occurrence is possible to explain only by foreign influence. Former was stern trained power-driven twin TT: such devices were widely applied in the French navy in 1930th; latter were 40mm AA MGs on disappeared mountings for decrease of resistance in special tight trunks. This construction almost repeated applied on Dutch submarines of О12 class.

Modernizations

1950s, all: - 2 x 1 - 40/40, 1 x 2 - 533 TT; CT was streamlined; + radar, sonar

Naval service

Svärdfisken 18.1.1942 was badly damaged at collision with battleship Sverige and returned to service after repair only in 1949. Sjöborren was sunk as a result of collision 4.9.1942 but soon been salvaged and commissioned again after repair.

Many thanks to Wolfgang Stöhr for additional information on this page.
