GOTLAND submarines (1996-1997)

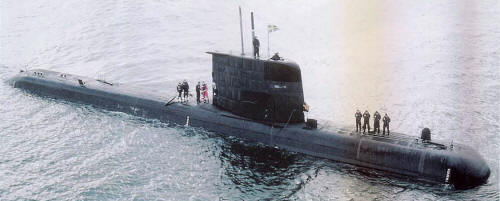

Uppland 2003 Many thanks to Wolfgang Stöhr for additional information on this page.

Ships


Name No Yard No Builder Laid down Launched Comp Fate
Gotland Gld 606 Kockums, Malmö + Karlskronavarvet, Karlskrona 27.11.1992 2.2.1995 2.9.1996 in service (2019)
Uppland Upd 607 Kockums, Malmö + Karlskronavarvet, Karlskrona 14.1.1994 9.2.1996 1.5.1997 in service (2019)
Halland Hnd 608 Kockums, Malmö + Karlskronavarvet, Karlskrona 21.10.1994 27.9.1996 1.10.1997 in service (2019)


Technical data


Displacement standard, t
Displacement normal, t

1494 / 1600

Length, m

60.4

Breadth, m

6.20

Draught, m

5.50

No of shafts

1

Machinery

2 MTU diesel-generators, 1 ASEA electric motor / 2 Stirling V4-275R AIP engines

Power, h. p.

2600 / 2040 / 200

Max speed, kts

11 / 20 / 5

Fuel, t

diesel oil

Endurance, nm(kts)
Armament

4 - 533 TT (bow, 12 Tp 613 or Tp 62), 2 - 400 TT (bow, 6 Tp 43 or Tp 45), 48 mines (Bunny or Tp 42)

Electronic equipmentTerma Scanter radar, CSU-90-2 sonar suite (PRS3-15, FAS-3-1), Manta ECM suite, SESUB 940A CCS
Complement

27

Diving depth operational, m300


Standard scale images


<i>Gotland </i>2000
Gotland 2000


Graphics


<i>Uppland</i> 2003 <i>Many thanks to Wolfgang Stöhr for additional information on this page.</i>
Uppland 2003 Many thanks to Wolfgang Stöhr for additional information on this page.


Project history

Type A 19 attack submarines. Design is updated version of Västergötland class with air-independent propulsion system and improved electronics. Originally ordered 28 March 1990, but specification changed 5 September 1991 to incorporate Stirling air-independent propulsion system, resulting in a 200t increase in displacement and overall length increasing by 7.5m. As for previous boats, Kockums building the mid-section of the hulls and Karlskronavarvet building the bows and sterns.

Modernizations 10.

2011, Halland; 2012, Uppland; 2014, Gotland: - SESUB 940A CCS; + Subac sonar, SESUB 960B CCS

2018, Gotland; 2019, Uppland: 2m hull section was added (length oa became 62.4m), new optronic mast, AIP system was modernized; - Terma Scanter radar; + new radar

Naval service

No significant events.

Many thanks to Wolfgang Stöhr for additional information on this page.
