STYRSÖ inshore minesweepers/minehunters (1996-1997)

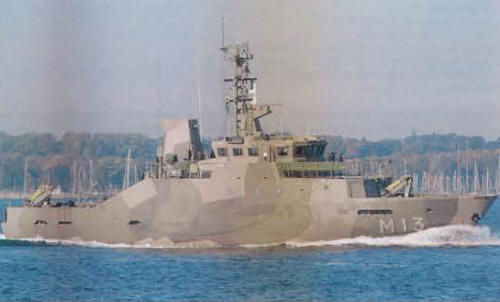

Skaftö 2007 Many thanks to Wolfgang Stöhr for additional information on this page.

Ships


Name No Yard No Builder Laid down Launched Comp Fate
Styrsö M11   Karlskronavarvet, Karlskrona   8.3.1996 21.9.1996 in service (2019)
Spårö M12   Karlskronavarvet, Karlskrona   30.8.1996 21.2.1997 in service (2019)
Skaftö M13 442 Karlskronavarvet, Karlskrona   20.1.1997 27.6.1997 in service (2019)
Sturkö M14 443 Karlskronavarvet, Karlskrona   27.6.1997 19.12.1997 in service (2019)


Technical data


Displacement standard, t175
Displacement full, t

205

Length, m

32.7 pp 36.0 oa

Breadth, m

7.90

Draught, m

2.20

No of shafts

2

Machinery

2 Saab-Scania DSI-14 diesels

Power, h. p.

1100

Max speed, kts

13

Fuel, t

diesel oil

Endurance, nm(kts)1500(12)
Armament

2 x 1 - 7.6/90, AK-90 acoustic, EL-90 magnetic, mechanical minesweeping gear, Double Eagle USV (or towed sonar), control equipment for 2 SAM drones, 4x REMUS 100 USV

Electronic equipment

Bridgemaster radar, DF 1000 or SeaBat 8100 sonar (or USV), Mysko, 9MCM200 Erimis CCS

Complement

17



Standard scale images


<i>Styrsö </i>2010
Styrsö 2010


Graphics


<i>Skaftö </i>2007 <i>Many thanks to Wolfgang Stöhr for additional information on this page.</i>
Skaftö 2007 Many thanks to Wolfgang Stöhr for additional information on this page.


Project history

Classed as YSB (ystridfartyg bevakning = surface combat vessel). Also can be employed as patrol craft. Capable of minesweeping and minehunting. GRP hull, stealth construction.

Modernizations

None.

Naval service

No significant events.

Many thanks to Wolfgang Stöhr for additional information on this page.
