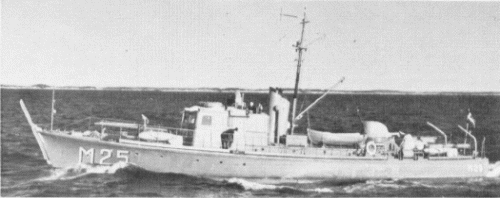

M25 1975

Ships

Names	Builders	Commissioned	Losses	Transfers	Discarding
M15 - 26	Långedrag, Göteborg: M15 Ramsö Varv: M16 Sverre Varv, Göteborg: M17 Neglingevarvet, Saltsjöbaden: M18 - 20 Motala, Norrköping: M21 Örlogsvarvet Karlskrona: M22 Kungsörs Båtvarv: M23 Fisksätra Varv, Stockholm: M24 Tore Holm Varv: M25 Larssons, Kristinehamn: M26	6-12/1941: M15 - 18, 20 - 26 5/1942: M19	no	no	11/1961: M17, 18 2/1965: M19 1969: M20 1976: M15, 16, 21 - 26

Technical data

Displacement standard, t	70
Displacement full, t
Length, m	27.7
Breadth, m	5.00
Draught, m	1.50
No of shafts	2
Machinery	2 Scania Vabis diesels
Power, h. p.	410
Max speed, kts	13
Fuel, t	diesel oil
Endurance, nm(kts)
Armament	1 x 1 - 20/63 K/66 M40, mechanical minesweeping gear
Complement	?

Standard scale images

Graphics

Project history

Harbour minesweepers with wooden hulls. Simplified variant of М1 class, adapted for mass production. They were built on various small yards, laid down in 1940-1941 and completed in 1941-1942.

Modernizations

none.

Naval service

no significant events.
