ÄLVSBORG minelayers (1971-1976)

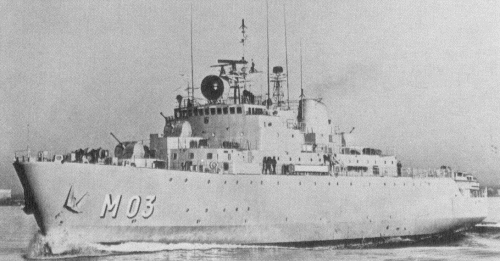

Visborg 1979
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| Älvsborg | M02 | 366 | Karlskronavarvet, Karlskrona | 16.11.1968 | 11.11.1969 | 10.4.1971 | auxiliary A234 1993, to Chile 2.1997 (Almirante José Toribio Merino Castro) |
| Visborg | M03 | 381 | Karlskronavarvet, Karlskrona | 16.10.1973 | 22.1.1975 | 6.2.1976 | auxiliary A265 1999, stricken 12.2010 |
Technical data
| Displacement standard, t | M02: 2500 M03: 2400 |
|---|---|
| Displacement full, t | M02: 2660 M03: 2540 |
| Length, m | 83.3 pp 92.4 oa |
| Breadth, m | 14.7 |
| Draught, m | 4.00 |
| No of shafts | 1 |
| Machinery | 2 Nohab-Polar 112VS diesels |
| Power, h. p. | 4200 |
| Max speed, kts | 16 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | |
| Armament | 3 x 1 - 40/70 Bofors SAK40/48 (315), 300 mines, helicopter deck |
| Electronic equipment | Scanter 009, Raytheon nav., M22 radars |
| Complement | 97 |
Standard scale images
Älvsborg 2000
Graphics
Visborg 1979

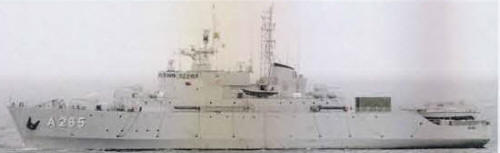

Visborg 2007
Project history
Älvsborg was also used as a submarine tender with accommodation for five crews (205 men). Visborg was also used as a command ship with accommodation for 155 staff members.
Modernizations
1977-1978, both: - M22 radar; + Sea Giraffe 50HC, 9LV 200 radars, AR-700 ECM suite, 2x Philax decoy RL
Naval service
No significant events.
