LOKE landing craft (1994)





Loke 2004

Ships


Name No Yard No Builder Laid down Launched Comp Fate
Loke A344   Oskarhammns     1994 completed for Navy as auxiliary, in service (2019)


Technical data


Displacement standard, t
Displacement full, t

455

Length, m

35.9

Breadth, m

9.00

Draught, m

2.68

No of shafts

2

Machinery

2 Scania DSI14 diesels

Power, h. p.
Max speed, kts

12.5

Fuel, t

diesel oil

Endurance, nm(kts)
Armament

none

Military load

50 t cargo or 50 troops

Electronic equipment

Scanter 009 radar

Complement

8



Graphics

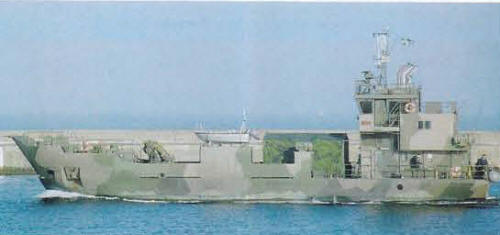

<i>Loke </i>2004
Loke 2004


Project history

Was to have been first of a new class of coastal transports for the Coastal Artillery but no additional units were ordered. Bow ramp and crane amidships.

Modernizations

None.

Naval service

No significant events.
