KARLSKRONA patrol craft (1980-1981)
Karlskrona 1980
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| Karlskrona | TV171, 1986- Kbv171 | Karlskronavarvet | 11.1979 | 3.9.1980 | to Belgium 9.1998 (Stern) | ||
| Nynäshamn, 1991- Skredsvik | TV172, 1986- Kbv172, 1991- A262 | Karlskronavarvet | 13.9.1980 | 10.1981 | to Navy as mine countermeasures support ship 1991, stricken 2006 |
Technical data
| Displacement standard, t | |
|---|---|
| Displacement full, t | 375 |
| Length, m | 46.0 pp 49.9 oa |
| Breadth, m | 8.52 |
| Draught, m | 2.40 |
| No of shafts | 2 |
| Machinery | 2 Hedemora V16A/15 diesels |
| Power, h. p. | 4480 |
| Max speed, kts | 20 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 3000(12) |
| Armament | helicopter deck |
| Electronic equipment | 2x Decca radars, Subsea sonar |
| Complement | 12 |
Graphics

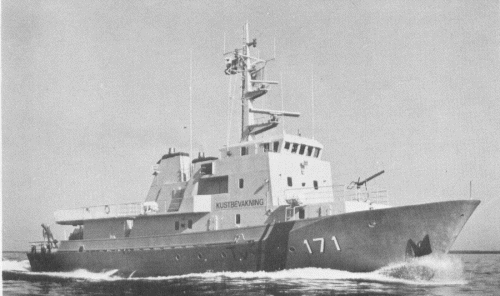

Karlskrona 1980
Project history
Coast Guard. Class 'A'. GRP hull. Firefighting monitor can be replaced by 40mm gun, mine rails can be fitted.
Modernizations
none.
Naval service
Skredsvik was transferred to Navy and in February 1993 was commissioned as mine clearance divers support ship and command vessel for mine countermeasures operations.
