TV236 patrol boats (1961-1972)
TV256 1985
Ships
| Names | Builders | Commissioned | Losses | Transfers | Discarding |
|---|---|---|---|---|---|
TV236 - 250 TV255 - 261 |
|
1961-1972: TV236-250, 255-261 |
None |
Estonia, 1992: Kbv257; 1993: Kbv246, 259 Latvia, 1993: Kbv244, 249, 250, 256, 260 Lithuania, 1993: Kbv245 |
early 1980s: TV239 1994-1997: Kbv236-238, 240-243, 247, 248, 255, 258, 261 |
Technical data
| Displacement standard, t | 17 |
|---|---|
| Displacement full, t | |
| Length, m | 16.2 |
| Breadth, m | 3.70 |
| Draught, m | |
| No of shafts | 2 |
| Machinery | 2 Volvo-Penta TAMD120A diesels |
| Power, h. p. | 700 |
| Max speed, kts | 22 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | |
| Armament | small arms |
| Electronic equipment | radar |
| Complement | 5 |
Graphics

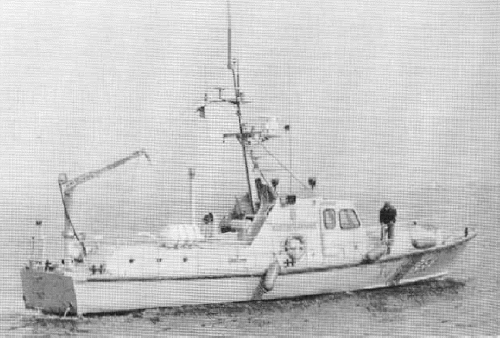

TV256 1985
Project history
Coast Guard. Aluminium hull, class 'D'.
Modernizations
none.
Naval service
no significant events.
