N:R661 landing craft (1991-1998)





668 2002

Ships


Names Builders Commissioned Losses Transfers Discarding

662 - 677

Homsvarvet: 662, 663

Djupviks, Tjörn: 664-677

1991: 662

1993: 663

1996-1998: 664-677

None

None

in service (2019): 662 - 677



Technical data


Displacement standard, t35
Displacement full, t60
Length, m

23.0 pp 26.4 oa

Breadth, m

5.40

Draught, m

1.40

No of shafts

3 waterjets

Machinery

3 Saab-Scania DSI-14V8 or Volvo-Penta 163 diesels

Power, h. p.

1200

Max speed, kts

25

Fuel, t

diesel oil 13

Endurance, nm(kts)150(15)
Armament

1 x 1 - 12.7/90

Military load15 t cargo, 17 troops
Electronic equipmentScanter 009 radar
Complement4


Graphics

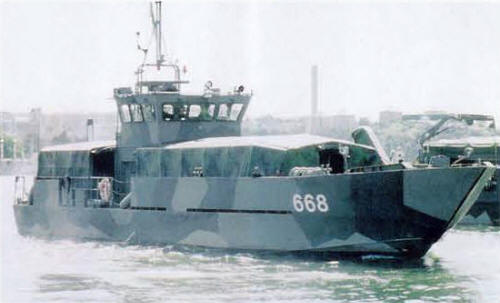

668<i> </i>2002
668 2002


Project history

Coastal artillery. Classified as support boats. Aluminium construction. Bow ramp and a small crane.

Modernizations

none.

Naval service

no significant events.
