MTB3 motor torpedo boats (1925)

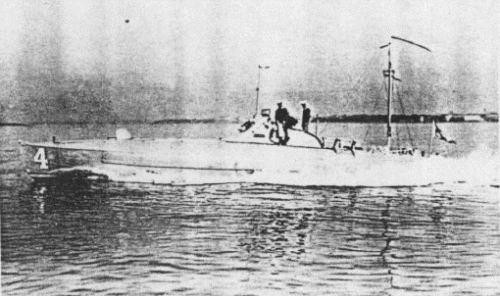

Mtb4 1925
Ships
| Names | Builders | Commissioned | Losses | Transfers | Discarding |
|---|---|---|---|---|---|
Mtb3, 4 |
Thornycroft, Hampton, UK: Mtb3, 4 |
1925: Mtb3, 4 |
no |
no |
8/1940: Mtb3, 4 |
Technical data
| Displacement standard, t | 12.5 |
|---|---|
| Displacement full, t |
|
| Length, m | 16.2 |
| Breadth, m | 3.40 |
| Draught, m | 1.10 |
| No of shafts | 2 |
| Machinery | 2 petrol engines |
| Power, h. p. | 750 |
| Max speed, kts | 40 |
| Fuel, t | petrol |
| Endurance, nm(kts) | |
| Armament | 1 x 1 - 8.80, 2 - 450 TT, 4 DC |
| Complement | 7 |
Standard scale images
Mtb3 1925
Graphics
Mtb4 1925
Project history
Thornycroft 55ft CMBs. Wooden hulls.
Modernizations
none.
Naval service
no significant events.
