HUGIN fast attack craft (missile) (1978-1982)





Magne 1980

Ships


Name No Yard No Builder Laid down Launched Comp Fate
Hugin P151   Bergens MV, Bergen, Norway   3.6.1977 3.7.1978 stricken 6.2001
Munin P152   Bergens MV, Bergen, Norway   3.10.1977 3.7.1978 stricken 6.2001
Magne P153   Bergens MV, Bergen, Norway   9.1.1978 12.10.1978 stricken 91995
Mode P154   Westermoen, Mandal, Norway   8.8.1978 12.1.1979 stricken 6.2001
Vale P155   Westermoen, Mandal, Norway   3.10.1978 26.4.1979 stricken 9.1995
Vidar P156   Westermoen, Mandal, Norway   6.3.1979 10.8.1979 stricken 6.2001
Mjölner P157   Westermoen, Mandal, Norway   12.6.1979 24.10.1979 stricken 9.1995
Mysing P158   Westermoen, Mandal, Norway   18.9.1979 14.2.1980 stricken 9.1995
Kaparen P159   Bergens MV, Bergen, Norway   8.8.1979 7.8.1980 stricken 2004
Väktaren P160   Bergens MV, Bergen, Norway   12.12.1979 19.9.1980 stricken 2004
Snapphanen P161   Bergens MV, Bergen, Norway   18.3.1980 14.1.1981 stricken 2004
Spejaren P162   Bergens MV, Bergen, Norway   13.5.1980 21.3.1981 stricken 6.2008
Styrbjörn P163   Bergens MV, Bergen, Norway   15.8.1980 26.10.1981 stricken 2004
Starkodder P164   Bergens MV, Bergen, Norway   11.11.1980 24.8.1981 stricken 2004
Tordön P165   Bergens MV, Bergen, Norway   3.2.1981 26.10.1981 stricken 6.2008
Tirfing P166   Bergens MV, Bergen, Norway   17.9.1981 21.1.1982 stricken 2004


Technical data


Displacement standard, t

140

Displacement full, t170
Length, m

33.6 pp 36.6 oa

Breadth, m

6.30

Draught, m

1.70

No of shafts

2

Machinery

2 MTU 20V672 TB90 diesels

Power, h. p.

7200

Max speed, kts

35

Fuel, t

diesel oil

Endurance, nm(kts)550(35)
Armament

6 x 1 RB-12 SSM (6 Penguin Mk 2) or (2 x 1 RB-12 SSM (2 Penguin Mk 2), 24 mines) or (2 x 1 RB-12 SSM (2 Penguin Mk 2), 2 DCR), 1 x 1 - 57/70 SAK57 Mk 1

Electronic equipmentScanter 009, 9LV200 Mk 2 radars, SQ3D/SF sonar
Complement

22



Standard scale images


<i>Hugin </i>1980
Hugin 1980


Graphics


<i>Magne </i>1980

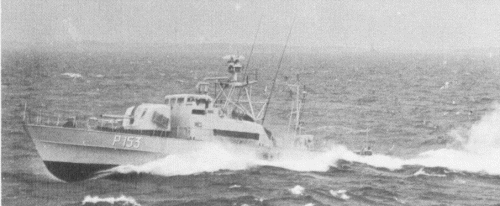

Magne 1980
<i>Styrbjörn </i>2003

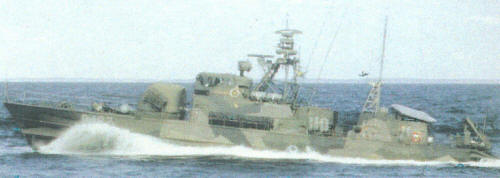

Styrbjörn 2003


Project history

Similar to Norwegian Snögg class. Main diesels were taken from retired Spica class craft.

Modernizations

late 1980s, all: + EWS-905 ECM suite

1992-1994, Kaparen, Väktaren, Snapphanen, Spejaren, Styrbjörn, Starkodder, Tordön, Tirfing: diesels were replaced by 2 MTU 16V396 TB94 (6400hp, 32kts, 550(32)kts); - 2 x 1 RB-12 SSM, SQ3D/SF sonar; + 4 x 9 ELMA ASWRL, 9GR600 radar, SA-950, ST-570 sonars

Naval service

No significant events.
