B61 patrol boats (1960-1967)

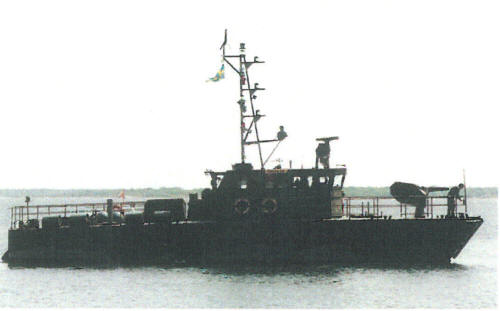

1994

Ships


Names Builders Commissioned Losses Transfers Discarding

61 Torskär

62 Väderskär

63 Ekeskär

64 Skifteskär

65 Gråskär

66 Örskär

67 Vitaskär

68 Altarskär

69 Äggskär

70 Hojskär

71 Getorskär

72 Flaggskär

73 Häradsskär

74 Bredskär

75 Sprängskär

76 Hamnskär

77 Huvudskär

Bröderna Larsson, Kristinehamn: 61 - 70

Kustartilleriet Varv, Fårösund: 71 - 77

1960 - 1961: 61 - 70

1966 - 1967: 71 - 77

None

None

1995: 61, 62, 66, 75

1997: 69, 72

1998: 71

2000: 64, 67

2003: 63, 65, 68, 70, 74, 76

2006: 73

2016: 77



Technical data


Displacement standard, t
Displacement full, t28
Length, m

21.1

Breadth, m

4.60

Draught, m

1.30

No of shafts

3

Machinery

61-70: 3 Volvo-Penta DSIR82 diesels

71-77: 3 Scania Vabis TIMD96B diesels

Power, h. p.

61-70: 535

71-77: 705

Max speed, kts

61-70: 18

71-77: 22

Fuel, t

diesel oil

Endurance, nm(kts)
Armament

1 x 1 - 20/70 Mk 7, 8 DC, mines

Electronic equipmentSimrad sonar
Complement

8



Graphics


1994
1994


Project history

Patrol boat belonged to Coastal Artillery. Fitted for minelaying.

Modernizations

1980s, all: + Decca RM914C radar

Naval service

no significant events.
