S401 patrol boats (1976-1977)
S403 1980
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| S401, ~1990- P401 | De Vries, Aalsmeer, Netherlands | 6.11.1976 | discarded 1999 | ||||
| S402, ~1990- P402 | De Vries, Aalsmeer, Netherlands | 3.5.1977 | discarded 1999 | ||||
| S403, ~1990- P403 | De Vries, Aalsmeer, Netherlands | 1.11.1977 | discarded 1999 |
Technical data
| Displacement standard, t | 127 |
|---|---|
| Displacement full, t | 140 |
| Length, m | 32.0 |
| Breadth, m | 6.50 |
| Draught, m | 1.70 |
| No of shafts | 2 |
| Machinery | 2 Paxman 12YHCM diesels |
| Power, h. p. | 2110 |
| Max speed, kts | 17.5 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 1200(13.5) |
| Armament | 2 x 1 - 40/60 Mk 3 |
| Electronic equipment | Decca 110 radar |
| Complement | 15 |
Graphics

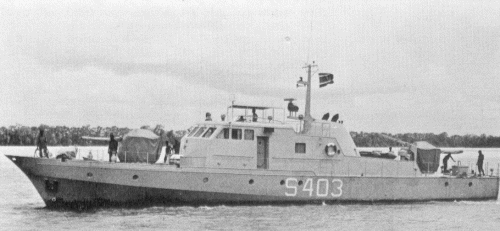

S403 1980
Project history
Large patrol boats.
Modernizations
None.
Naval service
No significant events.
