RANASUVU large patrol boats (1991-1992)
Ranarisi 2003
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| රණසුවූ [Ranasuvu] | P320 | Guijiang SYd, China | 11.1991 | sunk 13.4.1995 | |||
| රණවිරු [Ranawiru] | P321 | Guijiang SYd, China | 11.1991 | sunk 19.7.1996 | |||
| රණරිසි [Ranarisi] | P322 | Guijiang SYd, China | 14.7.1992 | in service (2019) |
Technical data
| Displacement standard, t | |
|---|---|
| Displacement full, t | 150 |
| Length, m | 41.0 |
| Breadth, m | 5.40 |
| Draught, m | 1.60 |
| No of shafts | 4 |
| Machinery | 4 M-50F-4 diesels |
| Power, h. p. | 4800 |
| Max speed, kts | 29 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 750(16) |
| Armament | 1 x 2 - 30/75 GCM-A03, 1 x 2 - 25/82 type 61, 2 x 2 - 14.5/93, 2 x 1 - 12.7/79 |
| Electronic equipment | Decca radar |
| Complement | 44 |
Graphics

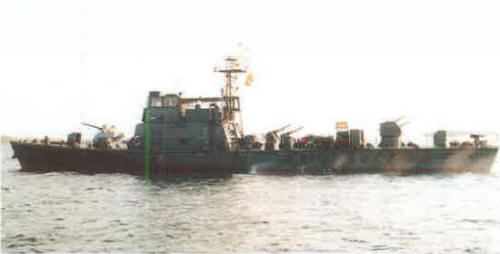

Ranarisi 2003
Project history
Chinese type 062 with modified machinery and armament.
Modernizations
None.
Naval service
Ranasuvu was destroyed by Tamil Tigers 13.4.1995, Ranawiru was destroyed by Tamil Tigers 19.7.1996.
