PRATHAPA patrol craft (1998)
Udara 2005
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| ප්රතාප [Prathapa] | P340 | Lushun DYd, China | 2.3.1998 | in service (2019) | |||
| උදාර [Udara] | P341 | Lushun DYd, China | 2.3.1998 | in service (2019) |
Technical data
| Displacement standard, t | |
|---|---|
| Displacement full, t | 212 |
| Length, m | 45.5 |
| Breadth, m | 6.40 |
| Draught, m | 1.70 |
| No of shafts | 4 |
| Machinery | 4 Z12V190BCJ diesels |
| Power, h. p. | 4800 |
| Max speed, kts | 28 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 750(16) |
| Armament | 2 x 2 - 37/66 type 76, 2 x 2 - 14.5/93, 2 x 1 - 12.7/79 |
| Electronic equipment | Decca RM1070A radar |
| Complement | 30 |
Graphics

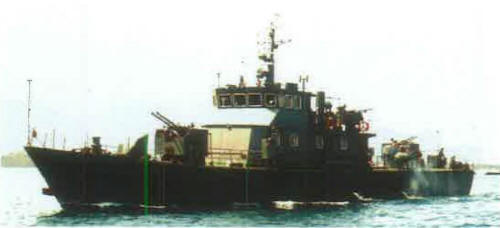

Udara 2005
Project history
Chinese project 062-IG, adapted for only surface combat role.
Modernizations
None.
Naval service
No significant events.
