P480 patrol boats (1997)
P480 1997
Ships
| Names | Builders | Commissioned | Losses | Transfers | Discarding |
|---|---|---|---|---|---|
P480-485 |
Trinity Marine, New Orleans, USA: P480-485 |
1997: P480-485 |
P482 (Tamil Tigers 2000) |
None | in service (2019): P480, 481, 483-485 |
Technical data
| Displacement standard, t | 57 |
|---|---|
| Displacement full, t | 68 |
| Length, m | 25.0 |
| Breadth, m | 5.33 |
| Draught, m | 1.32 |
| No of shafts | 2 waterjets |
| Machinery | 2 MTU 12V396 TE94 diesels |
| Power, h. p. | 4570 |
| Max speed, kts | 47 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 600(17) |
| Armament | 2 x 1 - 20/70 Mk 10, 2 x 1 - 12.7/79, 2 x 1 - 7.6/90 |
| Electronic equipment | Raytheon R1210 radar |
| Complement | 12 |
Graphics

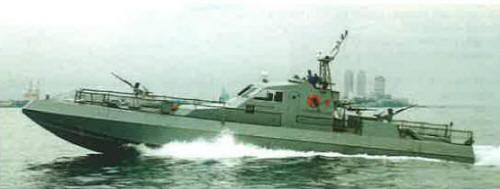

P480 1997
Project history
Aluminium construction.
Modernizations
none.
Naval service
No significant events.
