NAVYPEDIA


2009

Ships

Names	Builders	Commissioned	Losses	Transfers	Discarding
P4442-4447	Israeli Aircraft Industries, Be'er Sheva, Israel: P4442-4447	2009: P4442 2010: P4443-4445 2011: P4446, 4447	none	None	in service (2019): P4442-4447

Technical data

Displacement standard, t	64
Displacement full, t	70
Length, m	27.4
Breadth, m	5.70
Draught, m	1.10
No of shafts	2
Machinery	2 MTU 12V4000 M90 diesels
Power, h. p.
Max speed, kts	48
Fuel, t	diesel oil
Endurance, nm(kts)	12000(17)
Armament	1 x 1 - 30/80 Medal CRN-91, 1 x 1 - 23/87 Typhoon, 2 x 2 - 12.7/79
Electronic equipment	Decca Bridgemaster-E radar
Complement	18

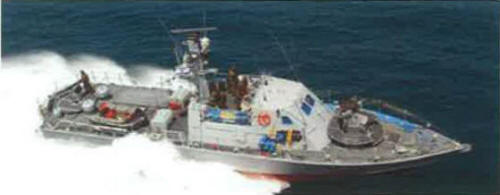

Graphics

Project history

Aluminium construction. Israeli 'Super Dvora Mk 3' design.

Modernizations

none.

Naval service

No significant events.
