SEGURA minehunters (1999-2005)

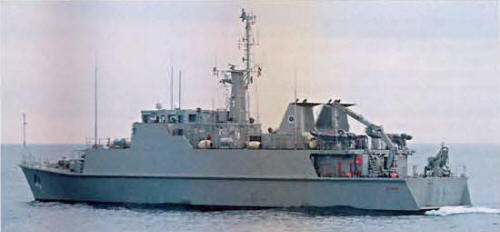

Segura 2008

Ships


Name No Yard No Builder Laid down Launched Comp Fate
Segura M31   Bazán-Izar, Cartagena 7.1995 25.7.1997 27.4.1999 in service (2019)
Sella M32   Bazán-Izar, Cartagena 1.1997 6.7.1998 28.5.1999 in service (2019)
Tambre M33   Bazán-Izar, Cartagena 1.1998 5.3.1999 18.2.2000 in service (2019)
Turia M34   Bazán-Izar, Cartagena 10.1998 22.11.1999 16.10.2000 in service (2019)
Duero M35   Bazán-Izar, Cartagena 2002 28.4.2003 5.7.2004 in service (2019)
Tajo M36   Bazán-Izar, Cartagena 2003 10.6.2004 10.1.2005 in service (2019)


Technical data


Displacement standard, t

520

Displacement full, t

550

Length, m

51.0 pp 54.0 oa

Breadth, m

10.7

Draught, m

2.15

No of shafts

2 Voith-Schneider vertical cycloidal propellers

Machinery

2 MTU 6V396 TB83 diesels

Power, h. p.

1525

Max speed, kts

14

Fuel, t

diesel oil

Endurance, nm(kts)

2000(12)

Armament

M31 - 34: 1 x 1 - 20/90 GAM-B01, 2 Pluto Plus USVs, decompression chamber

M35, 36: 1 x 1 - 20/90 GAM-B01, 1 Pluto Plus USV, 18 Minesniper Mk 2 USVs, decompression chamber

Electronic equipment

M31 - 34: type 1007 radar, Alcor-C e/o director, SQQ-32(SP) sonar, SMYC/CM CCS

M35, 36: type 1007, Koden radars, Alcor-C e/o director, SQQ-32(SP) sonar, SMYC/CM CCS

Complement

41



Standard scale images


<i>Segura </i>2010
Segura 2010


Graphics


<i>Segura </i>2008
Segura 2008


Project history

Construction of first four enlarged versions of the British Sundown-class minehunter design at Izar, Cartagena, was initially authorized in 1992 and confirmed by the Spanish cabinet in 1993. Two more minehunters were ordered in December 2000. Construction technology assistance was provided by France's DCN. The SMYC/CM (sistema de mando y control para cazaminas) minehunting data and command system is based on the GEC-Marconi NAUTIS-M; it has three CM-1 operator consoles and is integrated with the FABA PN/UDDB navigation system. The first four carry two Gayrobot Pluto Plus mine-detection and disposal vehicles, while later units carry Kongsberg Minesniper mine-disposal ROVs; an order for four additional ship-sets was placed in 2003.

Modernizations

None.

Naval service

No significant events.
