BDK3 small landing ships (1957)





BDK5 1971

Ships


Name

No

 Yard No

Builder

Laid down

Launched

Comm

Fate

BDK3

K3, 1971- LCT3



Bazán, Ferrol

 1958 1959

6/1959

stricken 1984

BDK4

K4, 1971- LCT4



Bazán, Ferrol

 1958 1959

6/1959

stricken 1985

BDK5

K5, 1971- LCT5



Bazán, Ferrol

 1958 1959

6/1959

stricken 1985


Technical data


Displacement standard, t562
Displacement full, t902
Length, m

56.6
Breadth, m11.6
Draught, m

1.70
No of shafts

2
Machinery

2 M60 V8 AS diesels
Power, h. p.

1000
Max speed, kts

8.5
Fuel, t

diesel oil
Endurance, nm(kts)1000(7)
Armament

2 x 1 - 20/70 Mk 7
Military load

300 t of cargo or 400 troops
Complement20


Standard scale images


<i>BDK3</i> 1960
BDK3 1960


Graphics

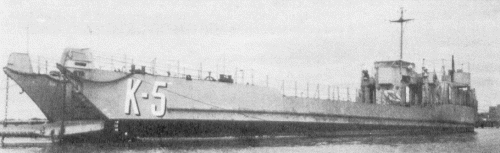

BDK5 1971
BDK5 1971


Project history

Spanish-built landing craft of British LCT(4) type.

Modernizations

None.

Naval service

No significant events.
