CHILREU patrol vessel (1988/1992)

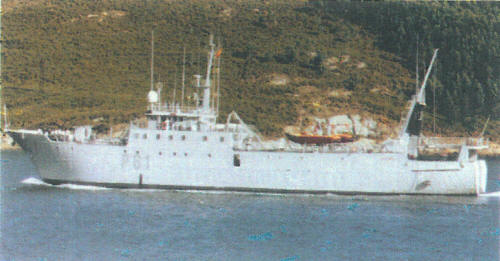

Chilreu 2003

Ships


Name No Yard No Builder Laid down Launched Comp Fate
Chilreu (ex-Pescalonso 2) P61   Naval Gijon SA, Gijon   2.5.1988 1988 // 30.3.1992 stricken 6.2012


Technical data


Displacement standard, t

1356

Displacement full, t

2100

Length, m

57.8 pp 67.8 oa

Breadth, m

11.0

Draught, m

4.66

No of shafts

1

Machinery

1 MaK 6M-453K diesel

Power, h. p.

2460

Max speed, kts

15

Fuel, t

diesel oil

Endurance, nm(kts)

15000(12)

Armament

2 x 1 - 12.7/90

Electronic equipment

2x Selesmar radars

Complement

34



Standard scale images


<i>Chilreu </i>2000
Chilreu 2000


Graphics


<i>Chilreu </i>2003
Chilreu 2003


Project history

Former commercial stern-haul trawler, transferred from the Ministry of Agriculture, Fisheries, and Food and commissioned into the Spanish Navy in 1992. Retained the refrigerated cargo hold.

Modernizations

None.

Naval service

No significant events.
